SLITTER-LINE
홈 > 설비현황 > SLITTER-LINE
SLITTER
설비LINE
가공제품(전/후)

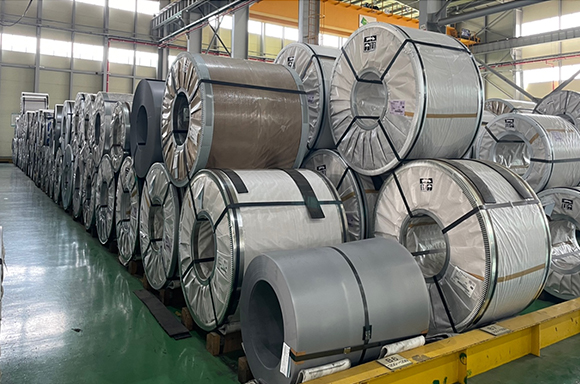

Before

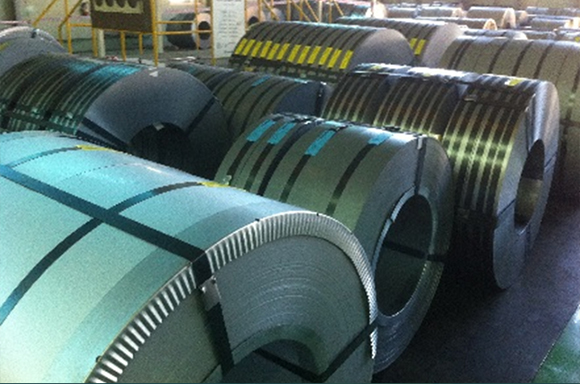

After

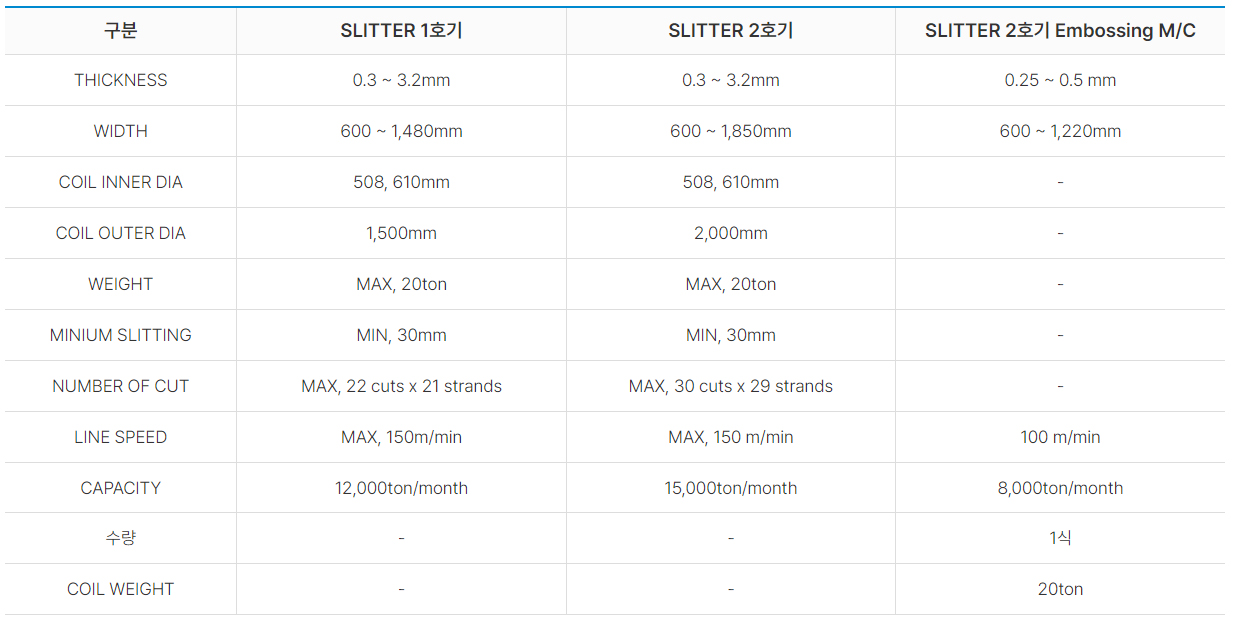

설비제원
| 구분 | SLITTER 1호기 | SLITTER 2호기 | SLITTER 2호기 Embossing M/C |
|---|---|---|---|
| THICKNESS | 0.3 ~ 3.2mm | 0.3 ~ 3.2mm | 0.25 ~ 0.5 mm |
| WIDTH | 600 ~ 1,480mm | 600 ~ 1,850mm | 600 ~ 1,220mm |
| COIL INNER DIA | 508, 610mm | 508, 610mm | - |
| COIL OUTER DIA | 1,500mm | 2,000mm | - |
| WEIGHT | MAX, 20ton | MAX, 20ton | - |
| MINIUM SLITTING | MIN, 30mm | MIN, 30mm | - |
| NUMBER OF CUT | MAX, 22 cuts x 21 strands | MAX, 30 cuts x 29 strands | - |
| LINE SPEED | MAX, 150m/min | MAX, 200 m/min | 100 m/min |
| CAPACITY | 12,000ton/month | 15,000ton/month | 8,000ton/month |
| 수량 | 1식 | 1식 | 1식 |
| COIL WEIGHT | 20ton | 20ton | 20ton |
