MINI SHEAR-LINE
홈 > 설비현황 > MINI SHEAR-LINE
MINI SHEAR
설비LINE
가공제품(전/후)

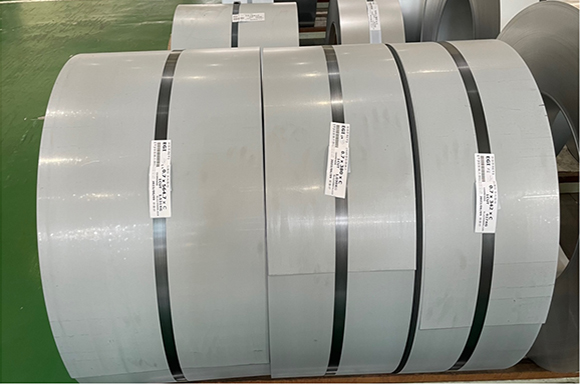

Before

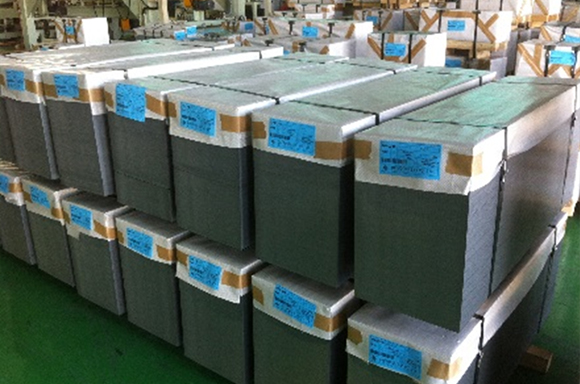

After

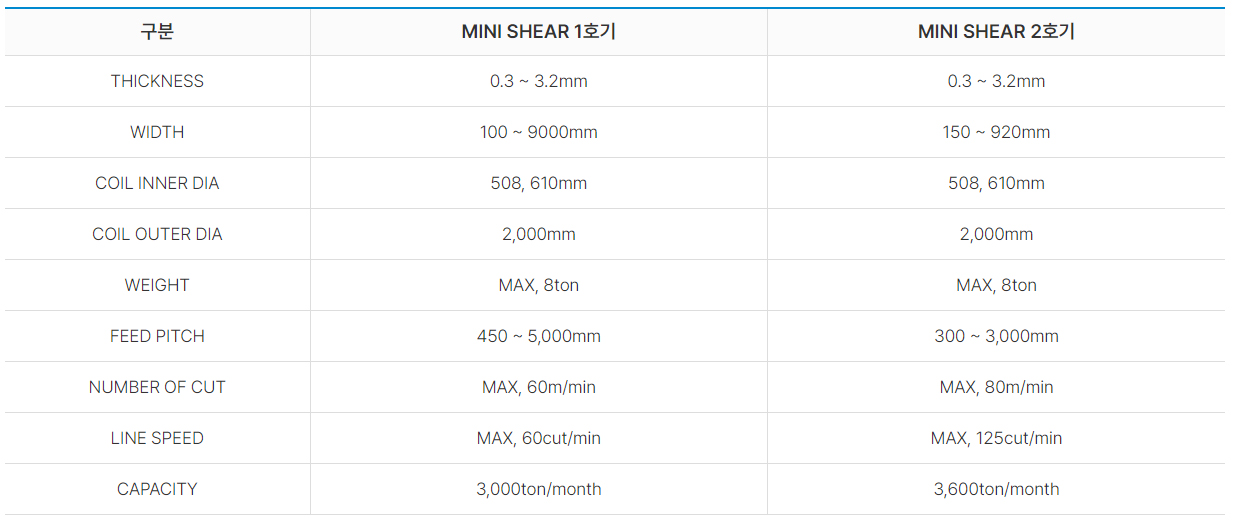

설비제원
| 구분 | MINI SHEAR 1호기 | MINI SHEAR 2호기 |
|---|---|---|
| THICKNESS | 0.3 ~ 3.2mm | 0.3 ~ 3.2mm |
| WIDTH | 110 ~ 900mm | 150 ~ 920mm |
| COIL INNER DIA | 508, 610mm | 508, 610mm |
| COIL OUTER DIA | 2,000mm | 2,000mm |
| WEIGHT | MAX, 8ton | MAX, 8ton |
| FEED PITCH | 450 ~ 3,000mm | 300 ~ 3,000mm |
| NUMBER OF CUT | MAX, 60 cut/min | MAX, 125 cut/min |
| LINE SPEED | MAX, 60 m/min | MAX, 80 m/min |
| CAPACITY | 3,000ton/month | 4,800 ton/month |
