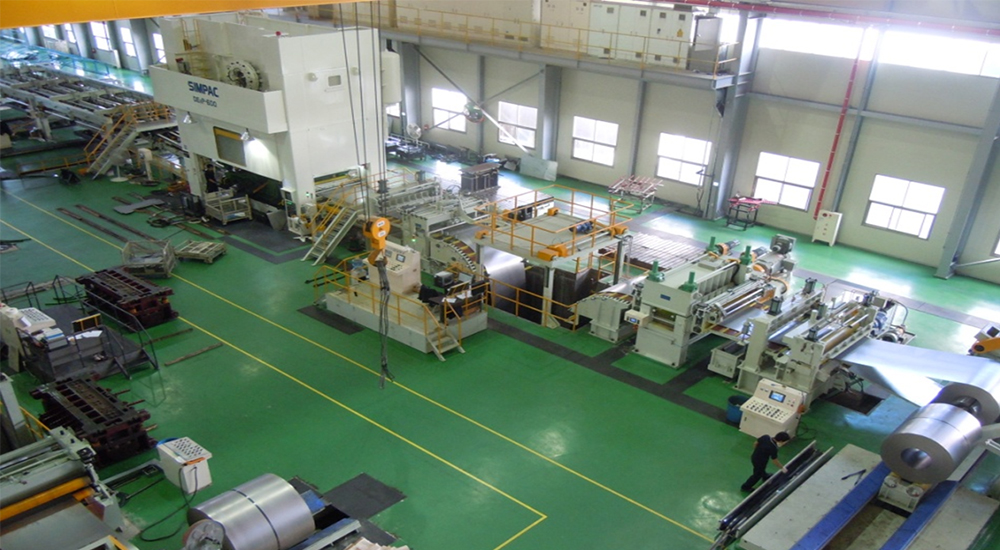

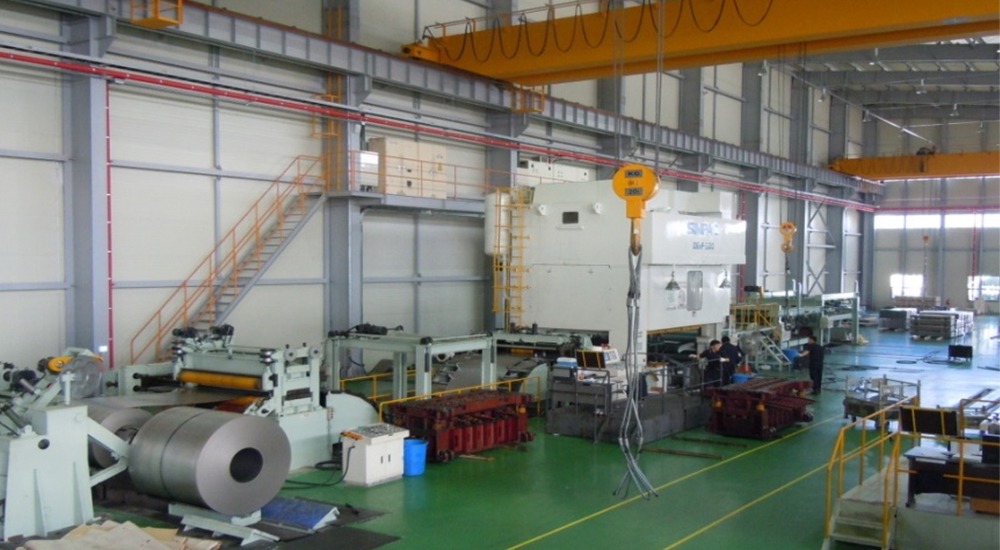

설비LINE

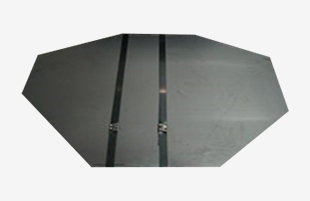

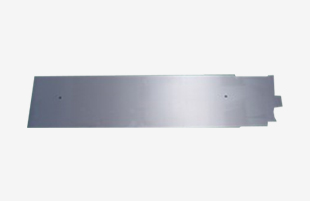

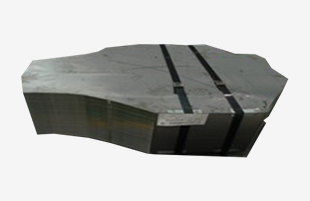

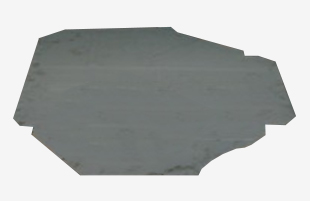

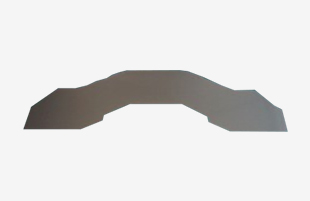

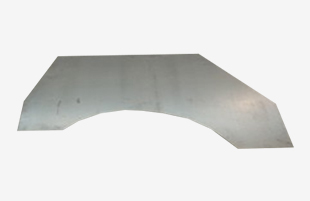

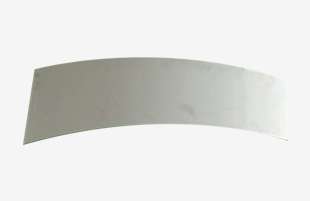

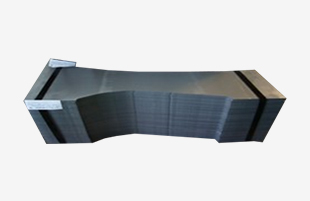

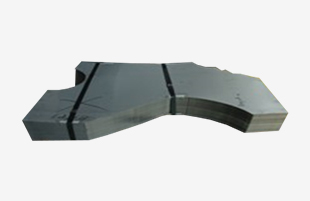

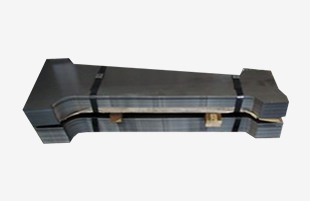

가공제품
PNL SILL SIDE L/R
W/H INR L/R
PNL QTR INR L/R
EXTN-F CMPT S/RL RR L/R
W/H-RR QTR L/R
W/H-RR INR L/R
REINF C/PLR QTR L/R
RAIL RF QTR RR SI L/R
REINF CTR PLR L/R
설비제원
| 구분 | 제원 |
|---|---|
| THICKNESS | 0.5 ~ 3.2mm |
| WIDTH | 350 ~ 1,830mm |
| COIL INNER DIA | 508, 610mm |
| COIL OUTER DIA | 2,000mm |
| COIL WEIGHT | MAX 20 ton |
| FEED PITCH | 100 ~ 3,500mm |
| LINE SPEED | MAX 80m/min MAX 70 stroke/min |
| CAPACITY | 10,000 ton/month |
설비LINE

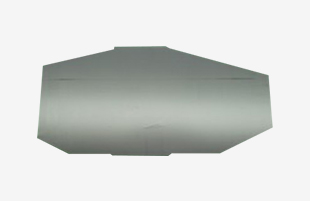

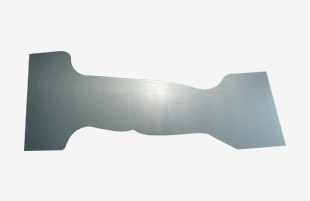

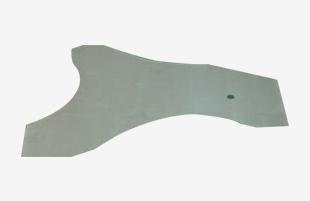

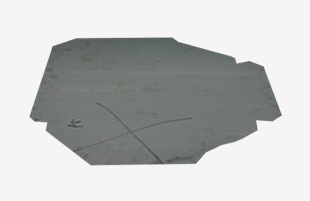

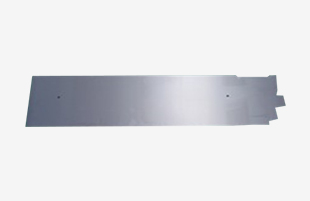

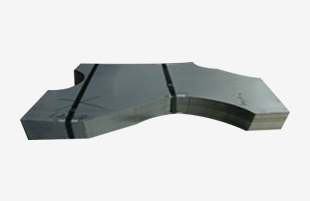

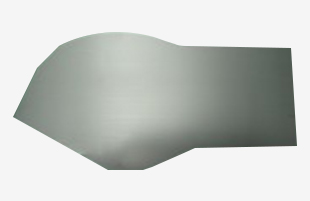

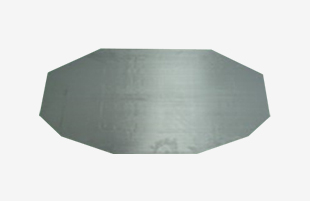

가공제품
Rr COMBI LAMP HSG LWR L/R
RFINF D-PLR INR L/R
PNL-QTR INR L/R
EXTN-QTR INR RR UPR L/R
PILLAR CTR INT L/R
PNL-W/HSE INR L/R
PNL SILL SIDE L/R
W/H INR L/R
PNL QTR INR L/R
설비제원
| 구분 | 제원 |
|---|---|
| THICKNESS | 0.5 ~ 3.2mm |
| WIDTH | 350 ~ 1,850mm |
| COIL INNER DIA | 508, 610mm |
| COIL OUTER DIA | 2,000mm |
| COIL WEIGHT | MAX 25 ton |
| FEED PITCH | 300 ~ 4,000mm |
| LINE SPEED | MAX 90m/min MAX 60 stroke/min |
| CAPACITY | 11,000 ton/month |
